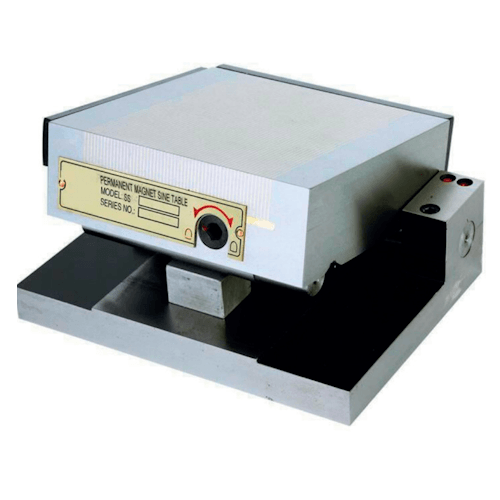

Single Sine : Uniaxial Permanent Magnet Sine Table
Abbreviations and Conventions used Storewide
All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:
L : Length | OD : Outer Dia | ID : Inner Dia | W : Width | H : Height | T : Thickness (also Height) | CS : Countersunk | G : Gauss
The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 10mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kg or N.
[10N (Newtons) = approx 1 Kg = approx 2.2 lbs Pull Force]
- Flat type for a wide range of uses.
- Ideal for high accuracy grinding operations, and EDM operations.
- Measurement of Angle accuracy.
- A positive locking device is mounted on the base.
- Easy to use and a large effective area is provided for machining the works.
- This device provides positive locking at any angle without distortion.
- Constructed of hardened alloy tool steel.
- Angle precision: +5˚
- Parallelism: 0.002/100mm ex-Factory.
Angle Range: 0 - 45˚. - Clamping Force: Up to 12 kg/cm2.
- Select this product if you require angle grinding of jobs in a single axis.
