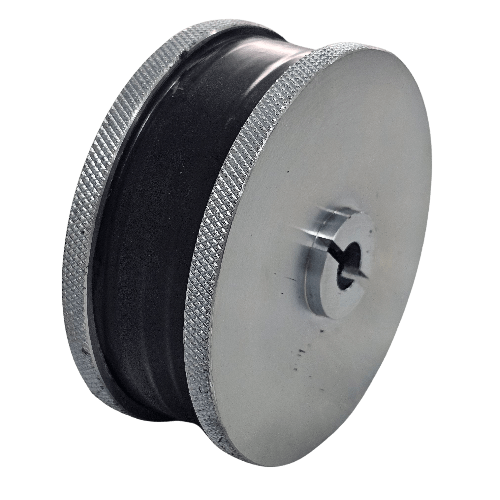

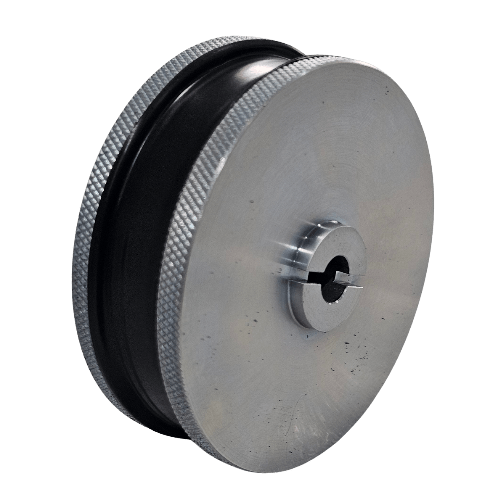

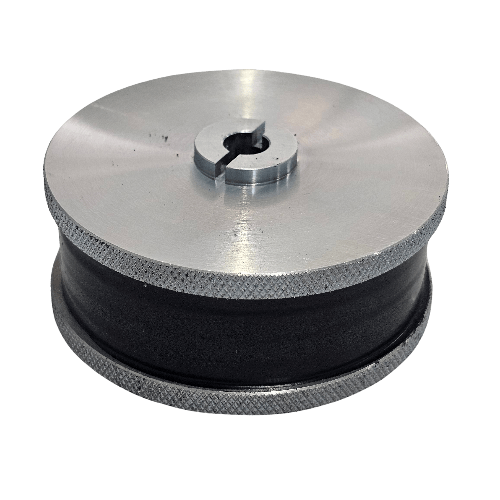

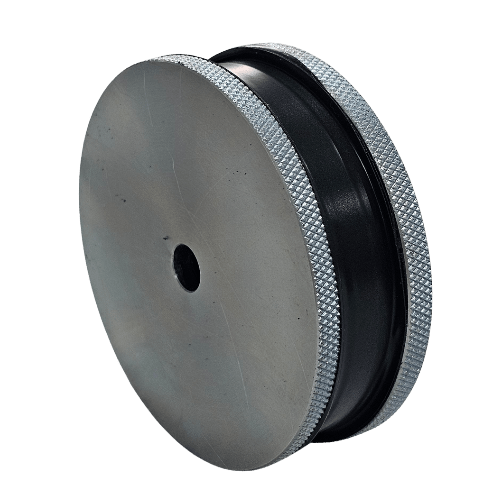

MagWheel - Galvanized Magnetic Wheel
Abbreviations and Conventions used Storewide
All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:
L : Length | OD : Outer Dia | ID : Inner Dia | W : Width | H : Height | T : Thickness (also Height) | CS : Countersunk | G : Gauss
The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 10mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kg or N.
[10N (Newtons) = approx 1 Kg = approx 2.2 lbs Pull Force]
- Fully custom built
- Normal or High-temperature applications (upto 300 Deg C)
- From 10 to 40 Kg (22 to 88 Lbs) Max Pull per wheelÂ
- Galvanised Steel wheels of 30mm to 50mm Dia and 20 to 40mm width
- Use for your robot applications for horizontal or vertical movement
- Contact us for details with your requirements
