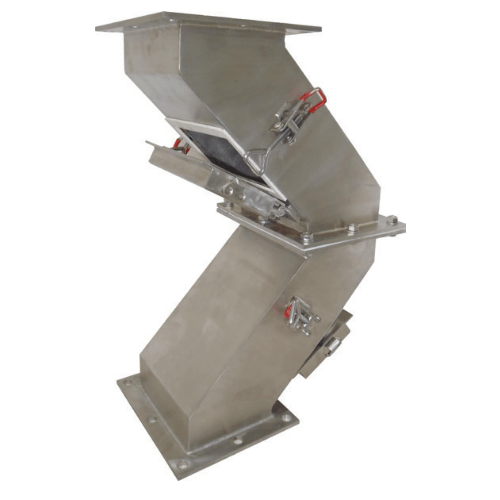

HM Series - Granular and Vertical Flow fine iron Impurity separation Hump Magnet
Abbreviations and Conventions used Storewide
All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:
L : Length | OD : Outer Dia | ID : Inner Dia | W : Width | H : Height | T : Thickness (also Height) | CS : Countersunk | G : Gauss
The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 10mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kg or N.
[10N (Newtons) = approx 1 Kg = approx 2.2 lbs Pull Force]
- Magnetic Humps are used where the flow of material is vertical.
- The material falling strikes directly on the first magnet changes direction and falls over the second magnet, ensuring clean outflow of material.
- The Magnets are of Hinged type and can be easily opened for periodic cleaning.
- Hump Magnets can be supplied to suit any size of Pipe/Duct.
