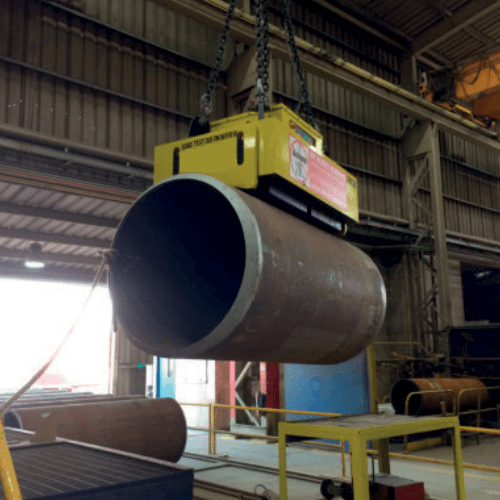

EPML-TUBE Electropermanent Magnet 2-12 Meter long steel tube magnetic lifting system

Abbreviations and Conventions used Storewide

All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:

L : Length | OD : Outer Dia | ID : Inner Dia | W : Width | H : Height | T : Thickness (also Height) | CS : Countersunk | G : Gauss

The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 10mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kg or N.

[10N (Newtons) = approx 1 Kg = approx 2.2 lbs Pull Force]

ElectroPermanent Magnet Heavy Duty Tube Lifter

  • Compact Modules (Single magnet modules can be added for added capacity to existing beam, if necessary) —> No need to overhaul existing crane infrastructure.
  • Electropermanent (EPM) Technology does not require constant supply of electricity to sustain magnetism
  • 95% savings in electrical consumption compared to Electro Lifters.
  • No more coil burnout due to overheating (for breach of duty cycle)
  • No more downtime and frequent maintenance or repair of the lifting magnets

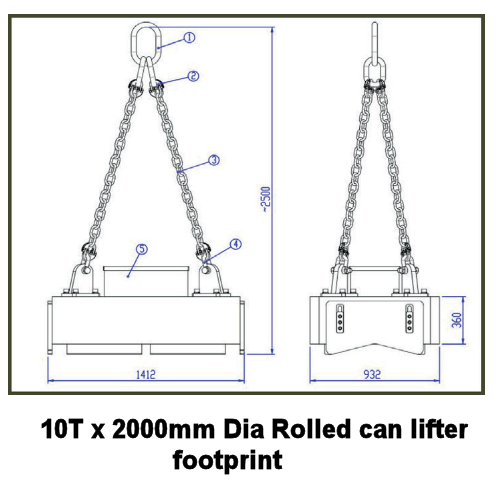

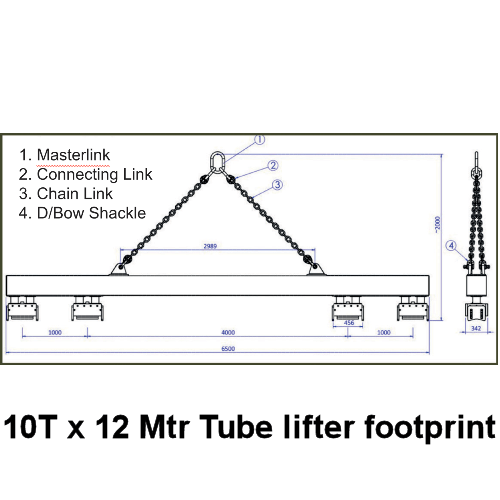

  • Ideal solution for handling single tubes or rolled cans from 6 -12 Mtr Length and 250 to 2000 mm diameter.

Product Code: EPML-P/T/X


Due to continuous upgradation in design there could be changes in specification. Other sizes on request. Before ordering, contact Supreme Magnets or your nearest dealer to confirm the suitability of this model for your application.

Datasheet

Have a question? Prefer a Quote?
