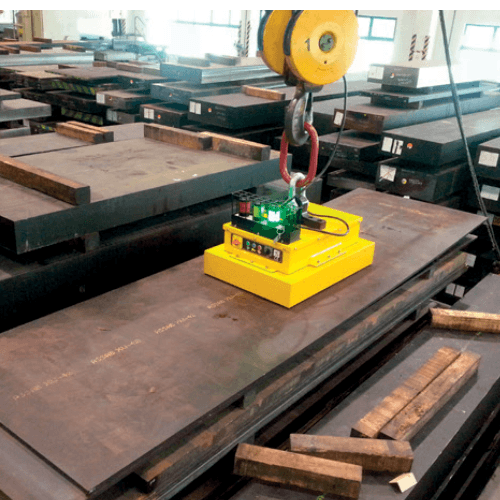

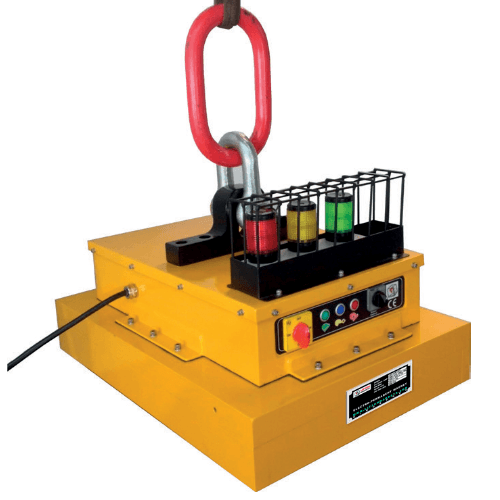

EPML-SLAB - Electropermanent steel slab lifting magnet

Abbreviations and Conventions used Storewide

All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:

L : Length | OD : Outer Dia | ID : Inner Dia | W : Width | H : Height | T : Thickness (also Height) | CS : Countersunk | G : Gauss

The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 10mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kg or N.

[10N (Newtons) = approx 1 Kg = approx 2.2 lbs Pull Force] Use this text to share information about your product.

  • EPML-Slab series employs the dynamic Electro Permanent magnet technology which generates a consistently powerful magnetic flux at a controlled depth through a workpiece with just a short impulse of electric current
  • Electropermanent lifting systems are suitable for flat contact surfaces on solid type of jobs such as Slabs, Bil-lets, Beams, Pipes, Plates and Blocks
  • The EPML-Slab series are designed to operate singly or in groups and ideal for lifting heavy loads of solid slabs and blocks.
  • The standard range of EPML-Slab series uses 4 poles of double magnet circuit to produce the most powerful gripping force in the EPM range
  • The Lifting capacity is at 3:1 safety factor. The control systems are integrated into the structure of each lifting module and are operable by wireless remote as a standard option
  • Select this range if you require to lift heavy slabs, forged blocks from 5 to 40 Tons
