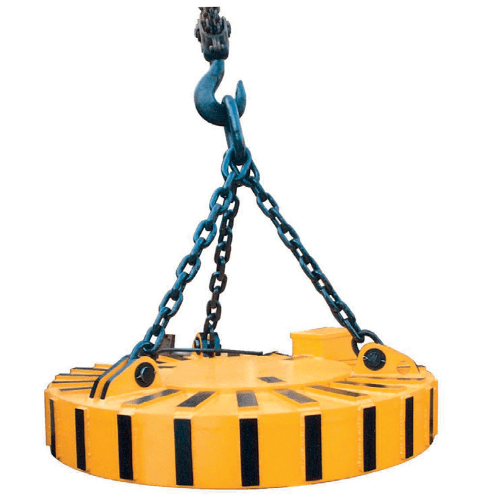

Circular Module Electromaxlift- Powerful circular loose scrap lifting electromagnet

Abbreviations and Conventions used Storewide

All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:

L : Length | OD : Outer Dia | ID : Inner Dia | W : Width | H : Height | T : Thickness (also Height) | CS : Countersunk | G : Gauss

The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 10mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kg or N.

[10N (Newtons) = approx 1 Kg = approx 2.2 lbs Pull Force]

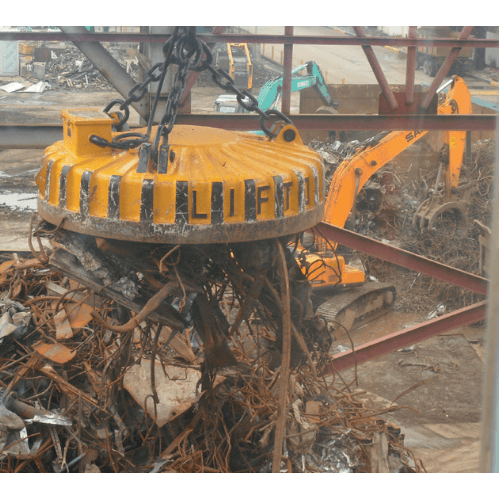

  • Easy & Speedy handling of scrap, cast iron, pig iron, broken steel.
  • Available in Normal duty, Heavy-duty & Super-heavy-duty series
  • Easy operation by a single operator
  • Manufactured in monobloc casted construction or fabricated welded construction depending on budget and application
  • Aluminium and Copper Conductor wound coil, special H / C insulation, completely sealed with thermal conductive compound and protected terminal box
  • Operates on 220 Volts DC, Duty cycle available from 50% to 75%
  • Optional control panel, power control and magnetism retention mechanism upon power failure with 10-20 minute Battery backup

Datasheet
