Precast Concrete Shuttering Magnet
Abbreviations and Conventions used Storewide
All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:
L : Length | OD : Outer Dia | ID : Inner Dia | W : Width | H : Height | T : Thickness (also Height) | CS : Countersunk | G : Gauss
The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 10mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kg or N.
[10N (Newtons) = approx 1 Kg = approx 2.2 lbs Pull Force]

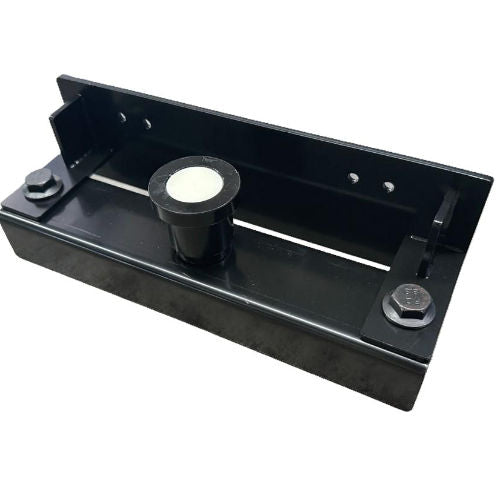

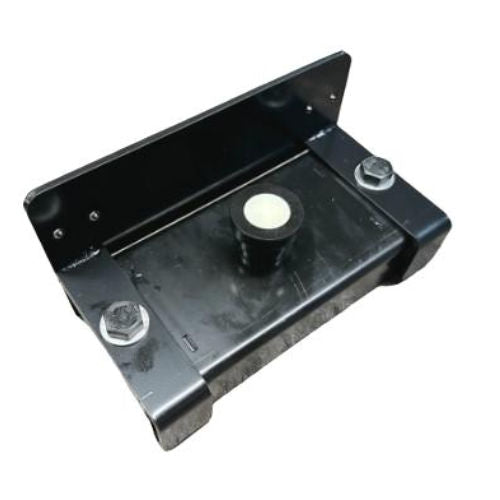

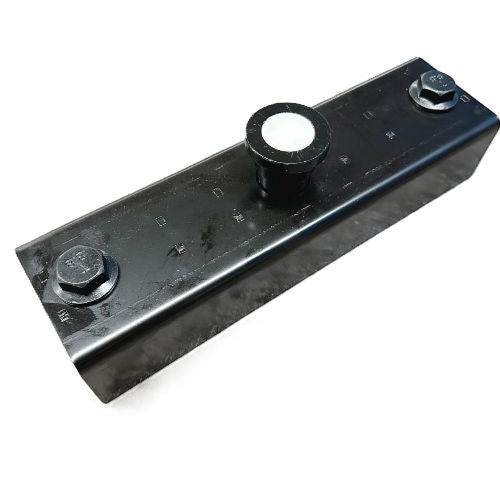

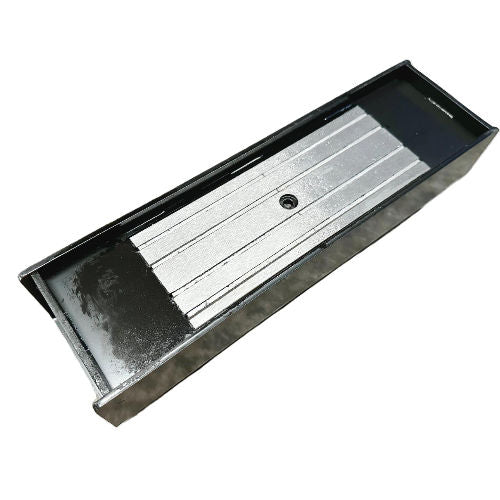

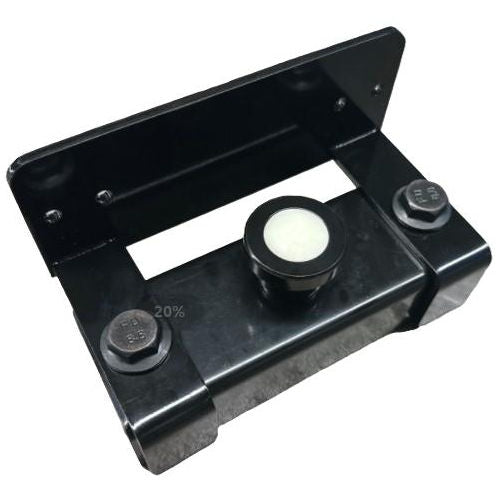

- Also called Shuttering magnets, these are solid welded U profile with pommel pin and threaded hole for fixture plates and custom attachments.
- Designed to work with forming materials to hold the external casting shape.
- Heavy-duty construction and holding power.
- To use, push the pommel down to complete the magnetic circuit on the steel platform of the formwork structure. To release, use a crowbar to force lift the pommel upwards.

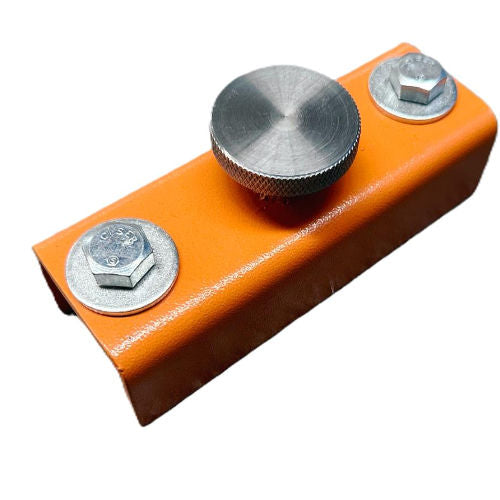

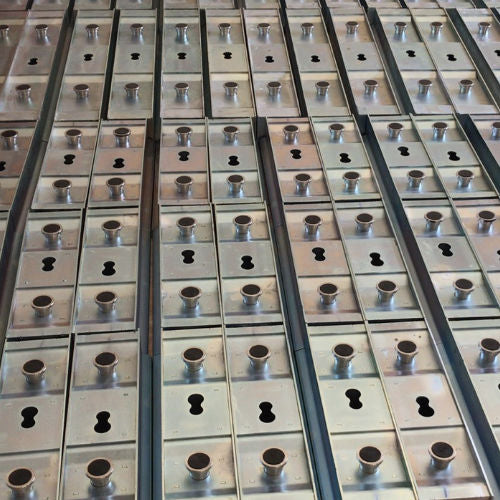

- Customised dimensions can be supplied if these are technically feasible.
- SS304 or Steel with Surface treatment possible
All dimensions in metric units. Due to continuous upgradation in design there could be changes in specification. Other sizes on request. Before ordering, contact Supreme Magnets or your nearest dealer to confirm the suitability of this model for your application.
