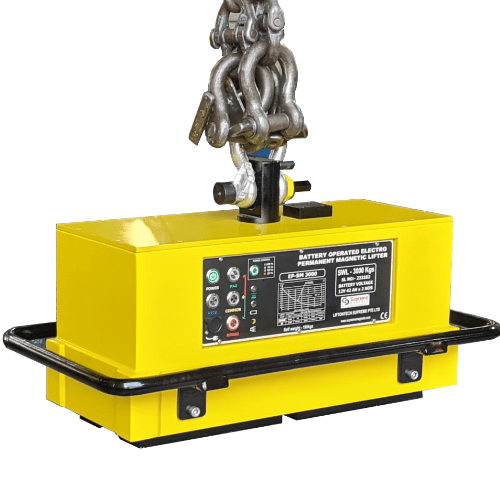

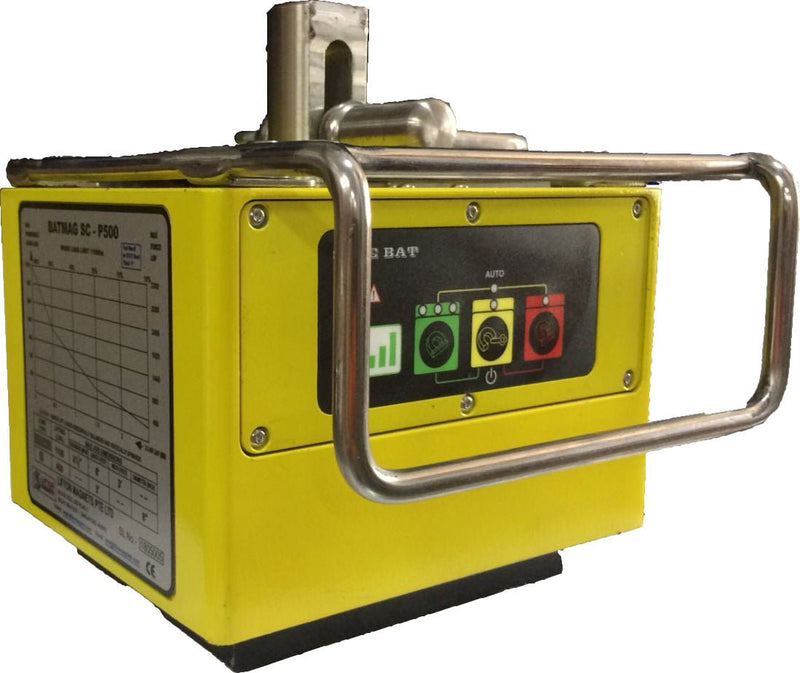

EPML-BATMAG : Crane operated Autonomous Battery Electropermanent Lifting Magnet
Abbreviations and Conventions used Storewide
All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:
L : Length | OD : Outer Dia | ID : Inner Dia | W : Width | H : Height | T : Thickness (also Height) | CS : Countersunk | G : Gauss
The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 10mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kg or N.
[10N (Newtons) = approx 1 Kg = approx 2.2 lbs Pull Force]
Characteristics:

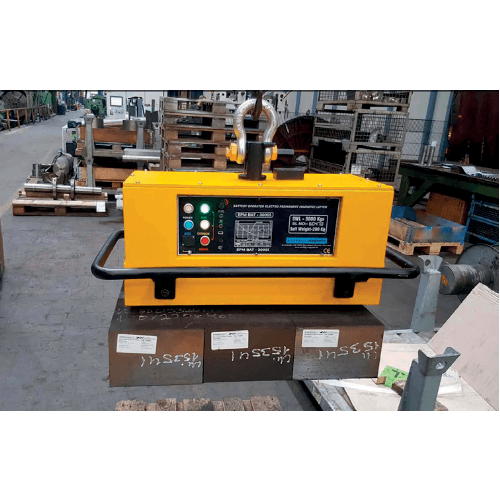

- Battery-operated Electropermanent Lifting Magnet for smaller flat & round sections, off-cuts, and small plates from CNC plate cutting tables, for loading & unloading plates from VMS CNC machines.
- Fully Autonomous handling, hands-off operation, simply by crane manipulation, 2 Pole design for lifting both round and flat components
- Option to control by panel push buttons or wireless remote pendant - both with Safety integrated 2-button operation
- Inbuilt fully independent, integrated, maintenance-free battery and controls
- Lightweight and robust construction, no power is needed during actual operation
- Longer lasting unit and batteries compared to traditional battery-operated Electromagnet lifters
- Special safety - Will not handle the load at below critical battery power or drop the load upon a sudden battery power drop.
Datasheet
