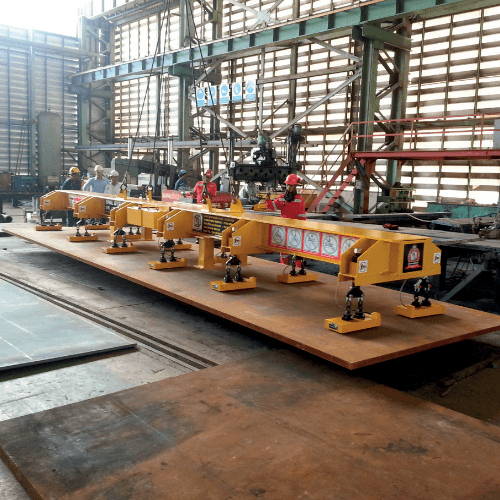

EPML-Plate : Electropermanent Steel plate lifting spreader magnet system
Abbreviations and Conventions used Storewide
All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:
L : Length | OD : Outer Dia | ID : Inner Dia | W : Width | H : Height | T : Thickness (also Height) | CS : Countersunk | G : Gauss
The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 10mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kg or N.
[10N (Newtons) = approx 1 Kg = approx 2.2 lbs Pull Force]
Characteristics:
- These Electropermanent Steel plate lifter magnets are designed to be compact, low weight, high strength and reliable with full adherence to industrial safety
- Unique EPM technique using patented, all metal double magnet system to handle single steel plates while each magnet isĀ configured with springĀ shock-absorbers to flexibly adjust to theĀ plateĀ bending tendency
- Intelligent current & impact Sensor integrated for equipment monitoring, utilisation and RoIĀ reports, alerts for predictive maintenance, Inspection & Annual load test inspection reminders,Ā Operations manual, all embedded in a rugged QR Tag
- EPM needs electricity only during switching ON and OFF
- Can be controlled by a single operatorĀ fromĀ a safe distance in support of 3-3-3 principle
- No battery backup required
- Over 95% saving of electricity as compared to conventional electromagnets
- Supplied with fixed or telescopic spreader beam structure, plate lengths from 4m to 16m and from 5mm thickness onwards can be handled using a single fixed or telescopic spreader beam
- Safety #1 - Will not turn OFF when load is hanging and spreader is in tension suspension due to incorporation of safety contact-less sensorĀ
- Safety #2 - Will not drop load upon sudden power outage or power failure
- Safety #3 - Two button operation forĀ activation | deactivation
- IdealĀ Ā model for single steel plate handling from 4m to 16m from overhead or gantry cranes for shot blasting, CNC or fabrication
