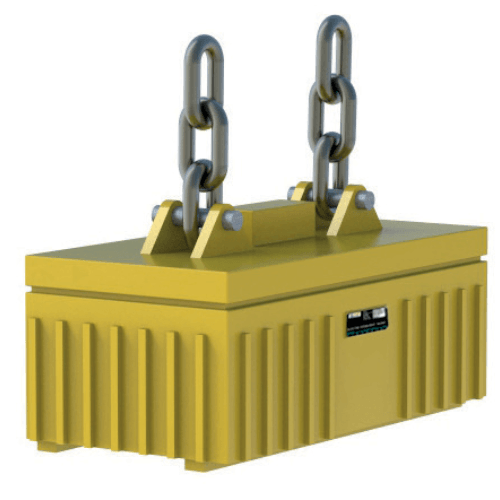

EPML-Rectangular Module : Electropermanent rectangular lifting magnet module
Abbreviations and Conventions used Storewide
All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:
L : Length | OD : Outer Dia | ID : Inner Dia | W : Width | H : Height | T : Thickness (also Height) | CS : Countersunk | G : Gauss
The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 10mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kg or N.
[10N (Newtons) = approx 1 Kg = approx 2.2 lbs Pull Force]
Charcteristics:

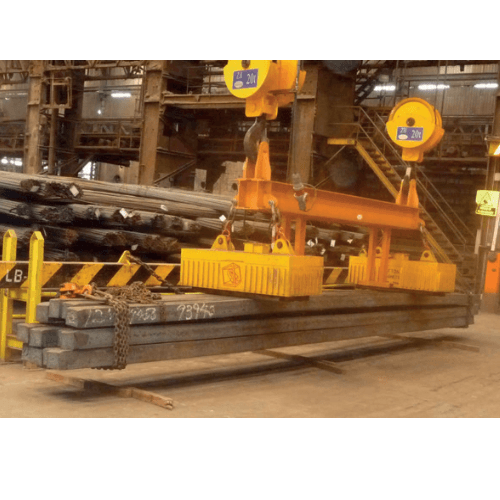

- Single units of these Lifting modules are combined to lift medium to long strictly rigid loads of billets, bars, beams, tubes and other solid loads with a firm and clear contact to magnet face
- Pole design and orientation depends on nature of load to be lifted
- Single units available in various safe lifting capacities from 500Kg, to 5000 Kg
- Compact, low weight, high strength and reliable with full adherence to industrial safety with 3 times Safety factor
- Single control system to control multiple modules of suitable capacity in each spreader
- If you are a Crane supplier with your own fabrication capability, you can opt to build your own Electropermanent lifting system by integrating several units of this module into your spreader
Datasheet
