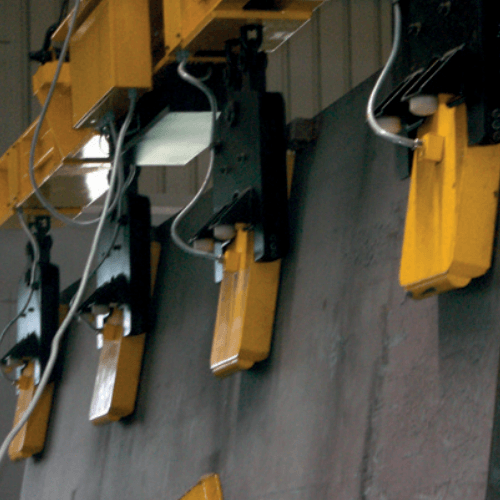

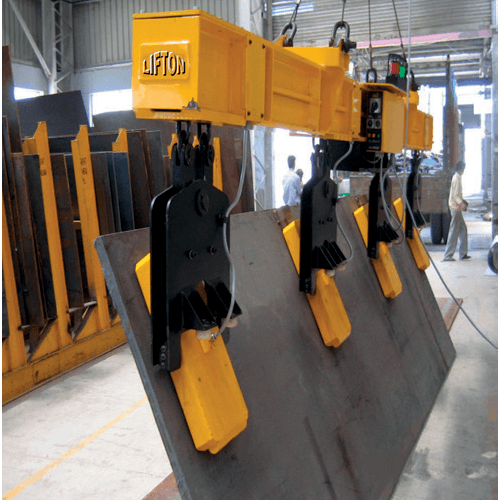

EPML-Plate/Tilt - Electropermanent magnet vertical steel plate lifting spreader magnet
Abbreviations and Conventions used Storewide
All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:
L : Length | OD : Outer Dia | ID : Inner Dia | W : Width | H : Height | T : Thickness (also Height) | CS : Countersunk | G : Gauss
The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 10mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kg or N.
[10N (Newtons) = approx 1 Kg = approx 2.2 lbs Pull Force] Use this text to share information about your product.
- Handles single steel plates upto 12-14 Mtr long in a vertical orientation, the main purpose of which is to conserve expensive space by stacking plates vertically
- Includes all the features of the EPML PLATE model
- Specially mounted magnets to enable swivel of upto 80 deg from horizontal orientation
- Unique EPM technique using double magnet system to handle single steel plates
- EPM needs electricity only during switching magnet ON and OFF
- Can be controlled by a single operator staying at a safe distance
- No battery back required; over 95% saving of electricity compared to conventional electromagnets
- System is configurable and modular and draws 2 or 3 phase mains AC power from 380 to 440 VAC.
- Select this model if you have a special requirement of vertical stacking and destacking and vertical handling of single steel plates in your yard
