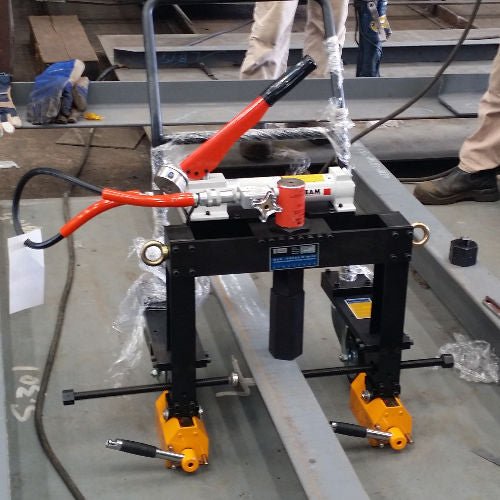

Mag-Press : Stiffener fitting welding magnet tool
Abbreviations and Conventions used Storewide
All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:
L : Length | OD : Outer Dia | ID : Inner Dia | W : Width | H : Height | T : Thickness (also Height) | CS : Countersunk | G : Gauss
The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 10mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kg or N.
[10N (Newtons) = approx 1 Kg = approx 2.2 lbs Pull Force]
- Compact and light-weight hydraulic magnet fitting tool for Stiffener welding of angle bars, bulb profiles.
- Complete hydraulic ram and Jack kit for 10 Tons & 10000 psi pressure.
- Set of three Extension Rods of 50, 100 & 200mm Length.
- Side Alignment screw pins for fine alignment of the profiles.
-
Wheel and handle for easy movement of the machine along the length
of the profile. - Secure up to 3 meters of profile with one clamping point.
