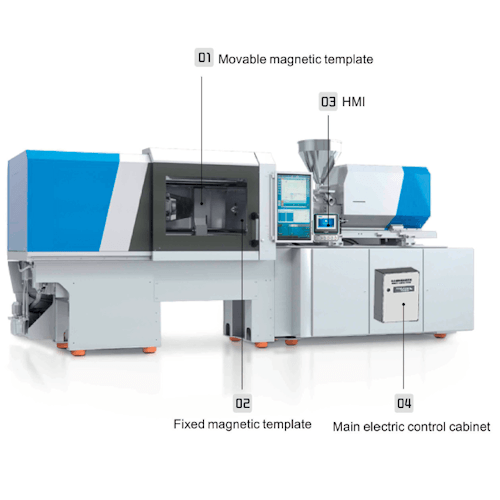

MAGNA IM : Electropermanent Magnetic Quick Mold Clamping System
Abbreviations and Conventions used Storewide
All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:
L : Length | OD : Outer Dia | ID : Inner Dia | W : Width | H : Height | T : Thickness (also Height) | CS : Countersunk | G : Gauss
The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 10mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kg or N.
[10N (Newtons) = approx 1 Kg = approx 2.2 lbs Pull Force] Use this text to share information about your product.
- The latest magnetic structure and outstanding magnetic circuit design achieve over 20% more magnetic force than conventional magnetic template designs.
- Requires less than 3 minutes for a normal mold change in a general injection machine, and shortens the mold change time from 2 hours to 20 minutes or less for oversized molds.
- Requires just a single operator for mold change and without the need for extra tools, greatly reducing labour cost intensity.
- Magnetic force remains permanently after magnetization.
- No spare parts required for template.
- More than 90% time savings.
- Over 95% power savings.
- Magnetic force guarantee and ideal clamping on mold.
- IP 67 waterproof.
- Select this model if you're looking for a mold clamping system for 50-4000 Tons injection molding machines.
