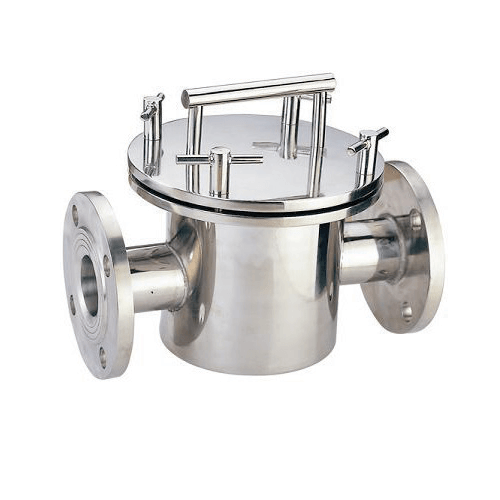

Fine iron particle impurity separation Liquid Trap Magnet

Abbreviations and Conventions used Storewide

All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:

L : Length | OD : Outer Dia | ID : Inner Dia | W : Width | H : Height | T : Thickness (also Height) | CS : Countersunk | G : Gauss

The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 10mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kg or N.

[10N (Newtons) = approx 1 Kg = approx 2.2 lbs Pull Force]

  • Liquid Trap Magnets are ideal for extracting exceptionally fine iron particles from heavy-duty, high-volume liquid & semi-liquid flows.
  • Usually effective for removing small contaminants and come in manual & easy-cleaning options. Available in Stainless Steel 304 or 316 options.
  • The magnetic cage can be removed easily without compromising the flow speed. Liquid Traps can be adapted to any pipeline.
