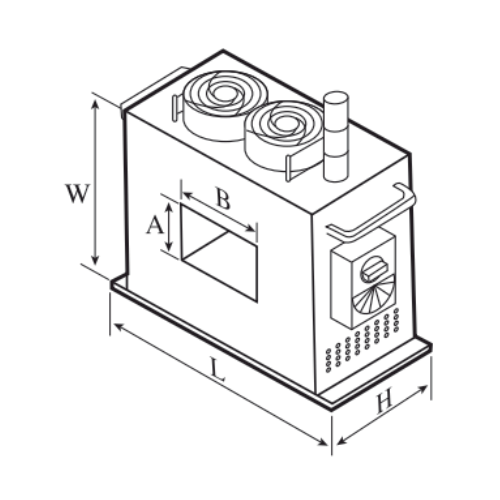

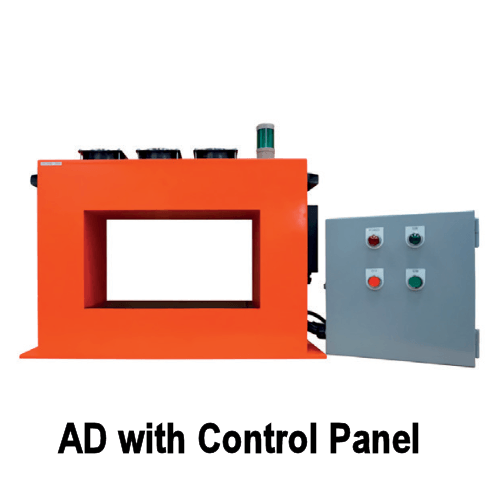

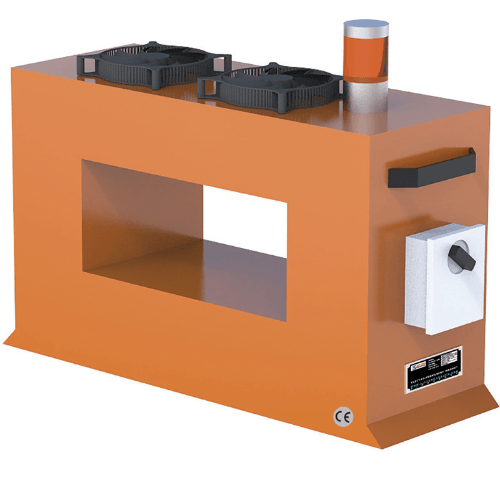

Apperture - Tunnel Demagnetizer

Abbreviations and Conventions used Storewide

All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:

L : Length | OD : Outer Dia | ID : Inner Dia | W : Width | H : Height | T : Thickness (also Height) | CS : Countersunk | G : Gauss

The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 10mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kg or N.

[10N (Newtons) = approx 1 Kg = approx 2.2 lbs Pull Force]

  • Strong AC demagnetizing field within the aperture window
  • Best effect is realized by passing suitably sized components inside the aperture to be repeated as many times as necessary. The size of the unit will determine the component handling ability.

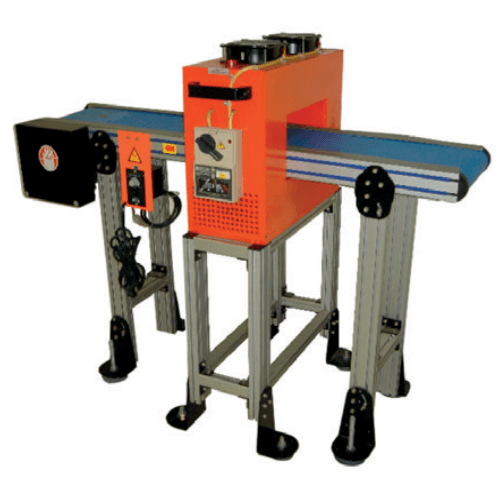

  • Can be used for in-line production process (see example). Contact us if your process requires such a setup.

Datasheet
