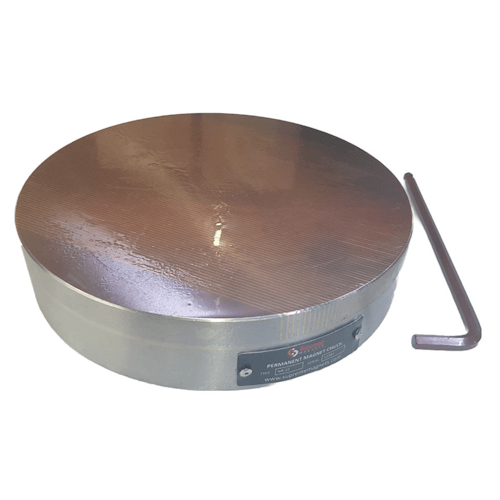

MicroGrind Round : Microfine Pole Round Magnetic Chuck

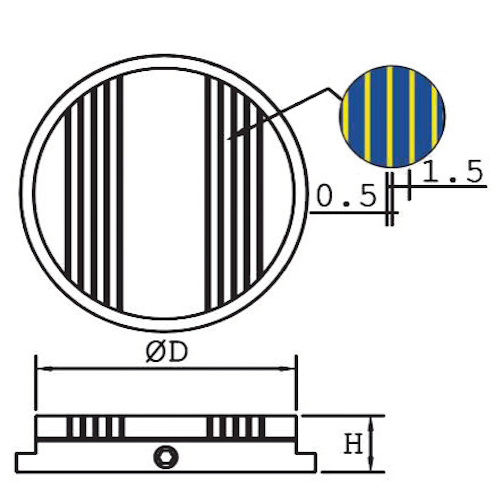

All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:
L : Length | W : Width | H : Height | T : Thickness (also Height)
The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 50mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kgs or N.
10N (Newtons) = approx. 1 Kg = approx 2.2 lbs Pull Force.
- Ideal for cylindrical or rotatory grinding.
- Enables the grinding of thin objects and small objects that has hitherto been difficult.
- Steel and brass laminated top plate.
- Fully extended poles- minimum loss of working area.
- Standard Allen Key for easy use.
- Extremely low profile for wheel area.
- Made with super powerful NdFeB new generation magnets.

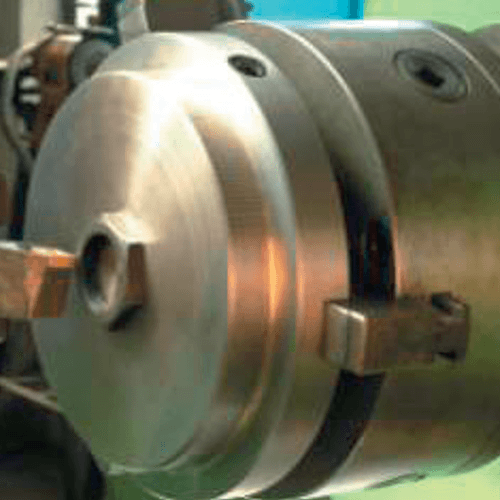

- Extension plate is suitable for clamping directly by 3 jaw chuck.
- Unique design of the chuck minimizes the deflection of top plate when switched ON/OFF, resulting in better job accuracy.
- Select this model if you require grinding of thin round disc shaped components upto 500mm diameter
