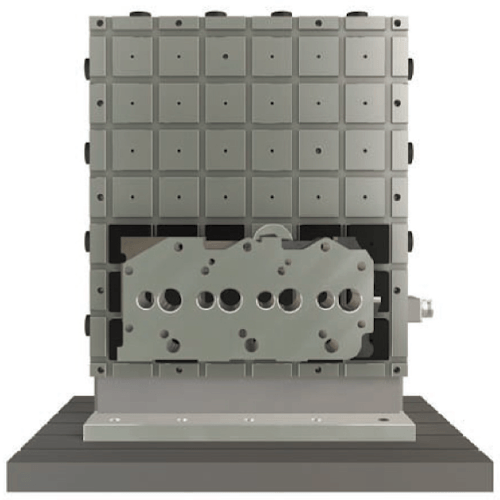

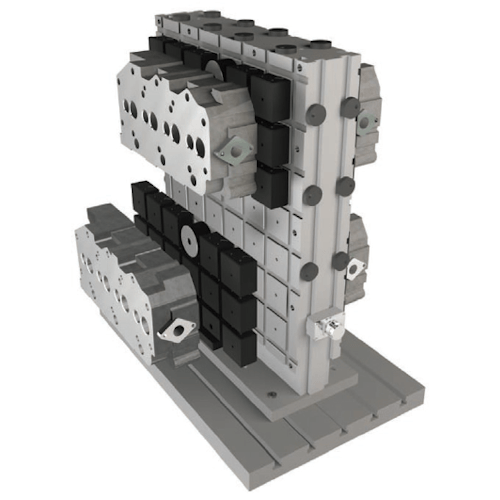

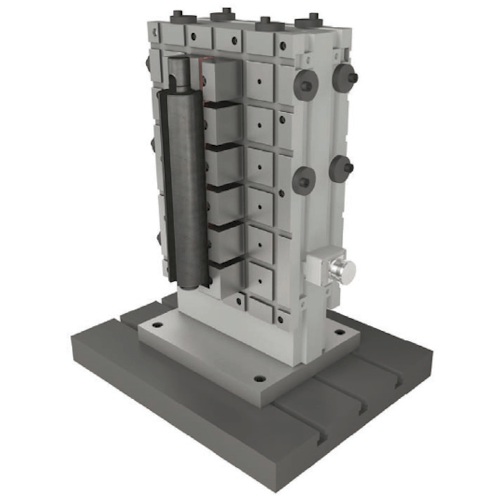

Magna Tomb : Square pole Electropermanent Magnet Tombstone
Abbreviations and Conventions used Storewide
All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:
L : Length | OD : Outer Dia | ID : Inner Dia | W : Width | H : Height | T : Thickness (also Height) | CS : Countersunk | G : Gauss
The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 10mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kg or N.
[10N (Newtons) = approx 1 Kg = approx 2.2 lbs Pull Force] Use this text to share information about your product.
- Patented full steel Top surface.
- High induction of magnetic flux.
- High & uniform clamping power throughout the bed.
- Variable magnetic power possible
- Perfect safety in case of power failure.
- 2 or 4 or multiple magnetic face.
- Unobstructed movement of tools during machining as all five faces of the job can be machined in the same setting.
- Drastically reduces the setup time and machining of the work pieces.
- Total magnetic surface used for clamping giving better machining accuracy as reducing chattering.
- 100% Leak Proof.
- Clamping force for EPCUBE 50 ≥ 350 kg/ pole.
- Clamping force for EPCUBE 75 ≥ 790 kg/ pole.
- Select this model for milling operations on horizontal machining center.

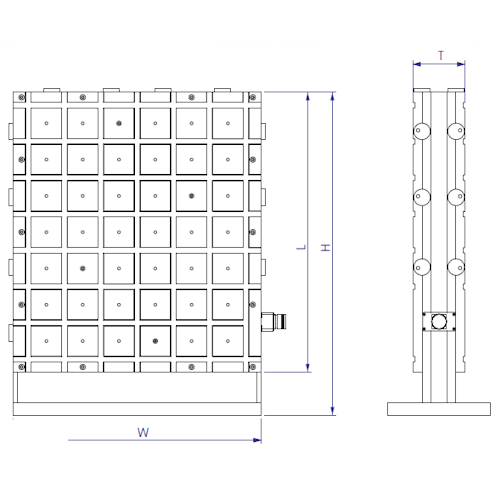

Datasheet
