Magna Radial : Radial Pole Electropermanent Magnet Round Chuck
All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:
L : Length | W : Width | H : Height | T : Thickness (also Height)
The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 50mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kgs or N.
10N (Newtons) = approx. 1 Kg = approx 2.2 lbs Pull Force.

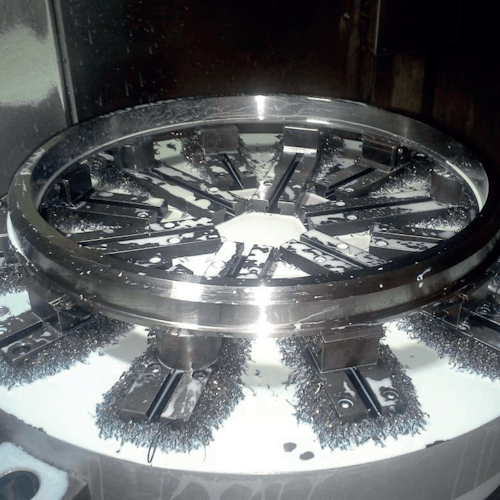

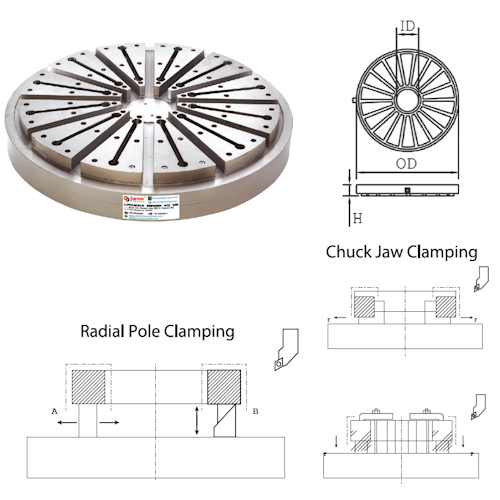

- Clamps ferromagnetic Rings on vertical and horizontal turning lathes.
- Radially movable location blocks help to position and secure workpieces (bearing rings, thrust bearings, etc.); this is also necessary for clearance of the cutting tool or wheel.

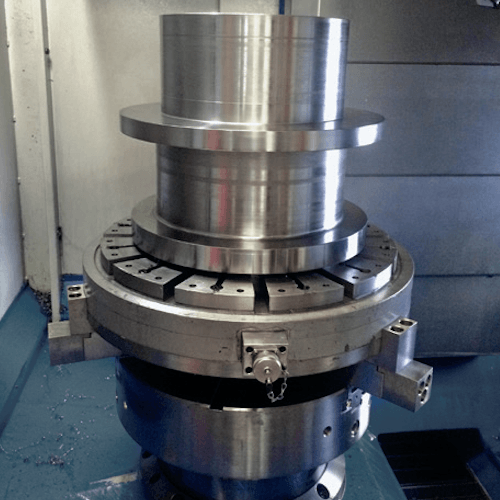

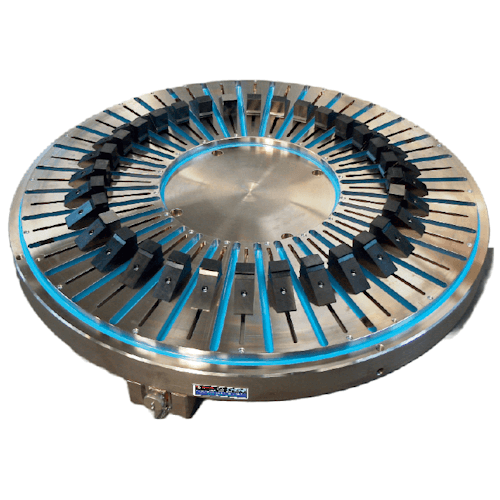

- Mobile Pole extensions ensure perfect clamping of irregular workpieces.
-
Perfect safety in case of power failure. No electricity is needed to keep the Magnetic chuck ON.
-

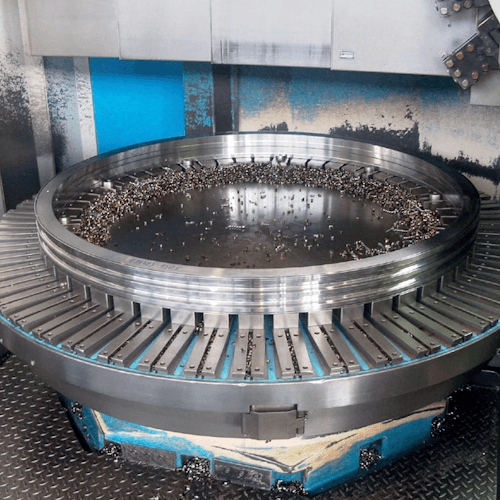

Ideal for Ring and round disc-shaped components of any diameter
-
Power from all poles is transferred to Rings / Plates held in concentric rings.
-
High resistance to coolant.
-
High mechanical rigidity and proven robustness.
-
High resistance to both Axial and Radial forces enabling application of Heavy cuts.
-
Select this model if you require versatility in high-power clamping for lathe applications for round, disc and ring-shaped components of 3000mm diameter and more.
