• Ideal for high accuracy grinding, EDM & angle measurement operations.
• This is suitable for high precision angle grinding on a grinding machine and so on.
• Flat type for wide range of uses.
• A positive locking device is mounted on the base.
• Easy to use and a large effective area is provided for machining the works.
• Constructed of hardened alloy tool steel.
• Effective area of compound sine chuck is enlarged by employing the thin type  permanent magnetic chuck.
• This increases the range of types usable by tilting works in length, breadth or composite angle.

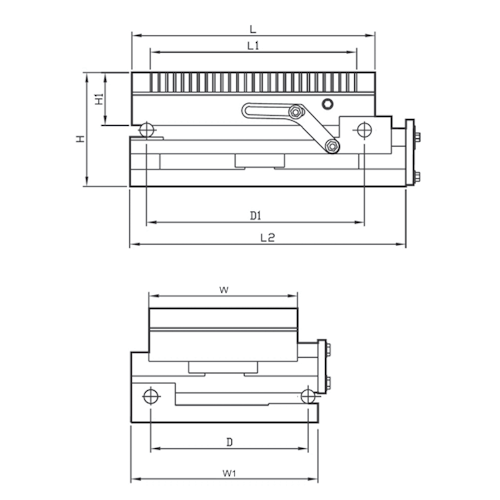

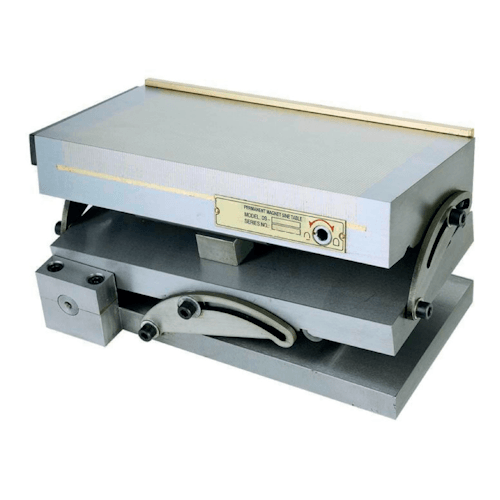

• Double way sine plate, can grind two way angle at the same time.
• Angle precision: +5˚
  Parallelism: 0.002/100mm ex-Factory
  Angle Range: 0 - 45˚
• Clamping Force: Up to 12 kg/cm2.
• Select this product if you require angle grinding / machining of jobs over two axes
