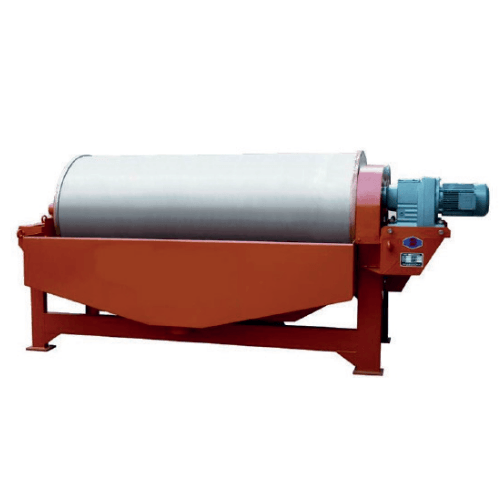

Wet Drum High Intensity Magnetic Separator
Abbreviations and Conventions used Storewide
All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:
L : Length | OD : Outer Dia | ID : Inner Dia | W : Width | H : Height | T : Thickness (also Height) | CS : Countersunk | G : Gauss
The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 10mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kg or N.
[10N (Newtons) = approx 1 Kg = approx 2.2 lbs Pull Force]
- Primarily used in the mining industry : mining, coal separation, sand processing.
- Depending upon the granularity of the raw material, there are three types of tanks : Half countercurrent, Direct flow and countercurrent.
- Very popular and rugged product made with strong coercive and high remanence permanent magnets.
