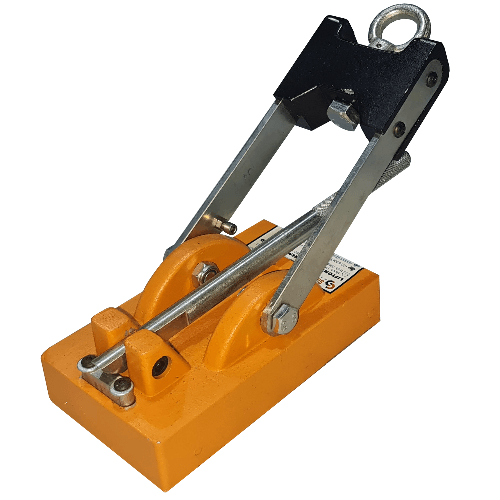

Sheet Lifter : Crane operated steel sheet lifting magnet

Abbreviations and Conventions used Storewide

All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:

L : Length | OD : Outer Dia | ID : Inner Dia | W : Width | H : Height | T : Thickness (also Height) | CS : Countersunk | G : Gauss

The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 10mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kg or N.

[10N (Newtons) = approx 1 Kg = approx 2.2 lbs Pull Force]

  • Simple, easy, flexible, economical and very light weight.

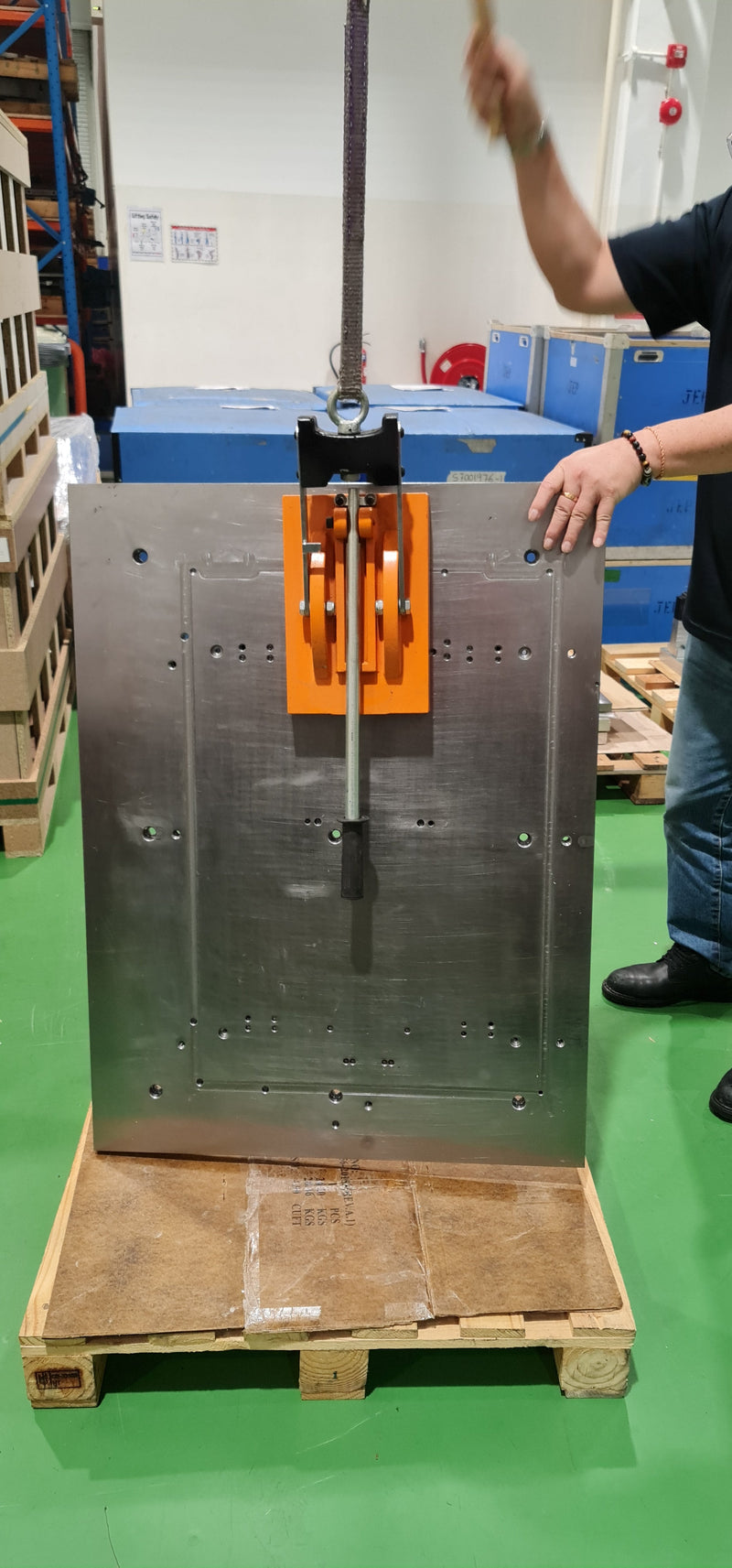

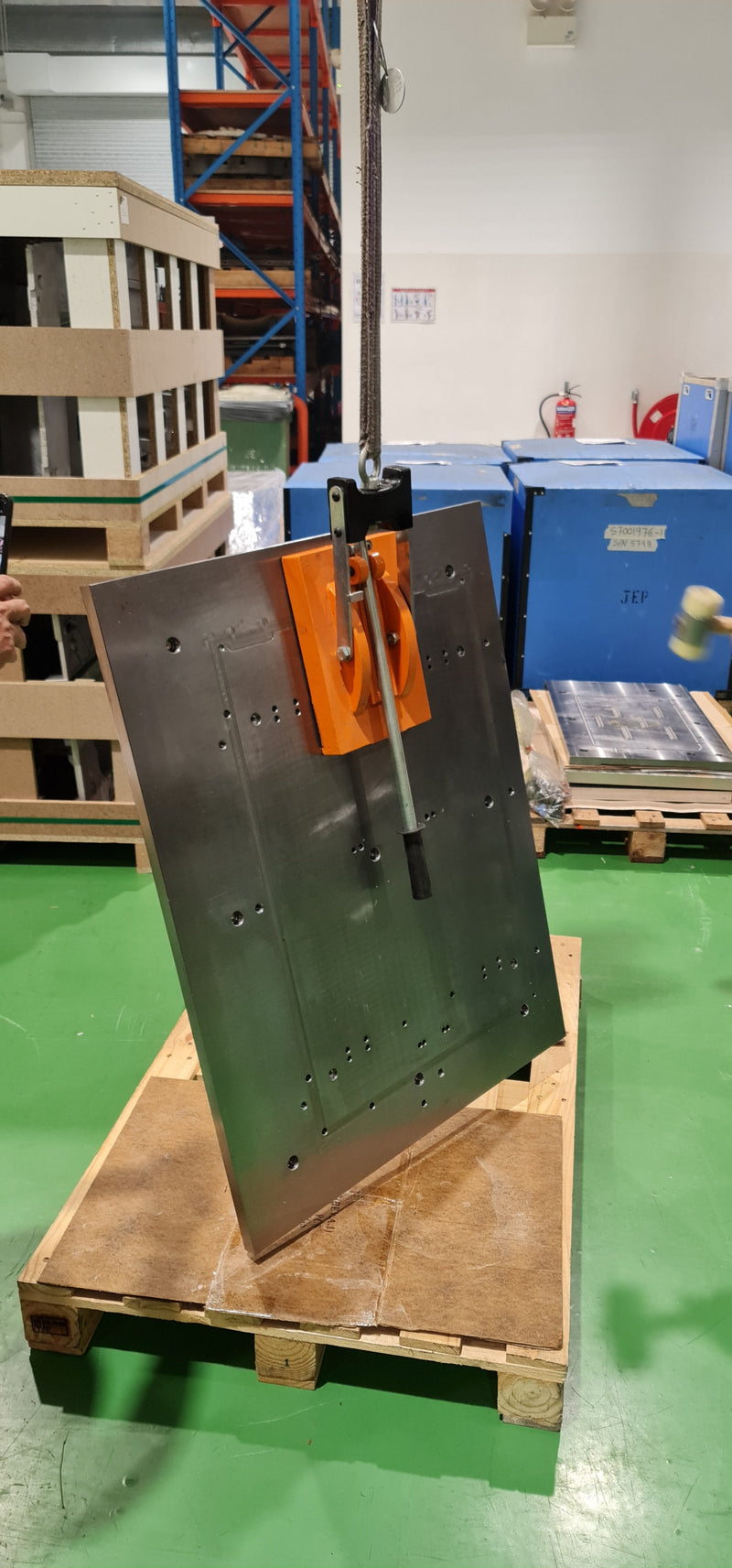

  • Can swivel 160° and lift sheets vertically and Horizontally.
  • Optimum flux density effectively lifts thick/ thin sheets.
  • Magnets always remain ON, Cam mechanism jack up lever releases the jobs easily with the help of the long handle.
  • Use this model if you need to handle thin sheets of 2 Mtr x 1 Mtr vertically or horizontally with an overhead crane.

Datasheet
