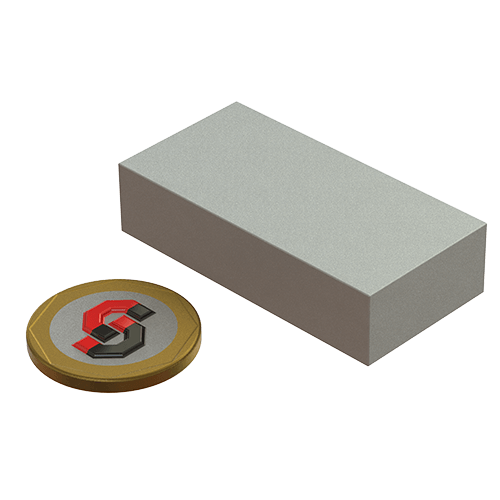

Samarium Cobalt magnet : 50mm L x 25mm W x 12mm T block
All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:
L : Length | OD : Outer Dia | ID : Inner Dia | W : Width | H : Height | T : Thickness (also Height) | CS : Countersunk | G : Gauss
The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 10mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kg or N.
10N (Newtons) = approx. 1 Kg = approx 2.2 lbs Pull Force.
* Grade Sm2Co17
* Approx 38.10 lb / 17.28 kg pull force
* Magnetized through 12mm
* Surface gauss approx 4900 G
RoHS, REACH Compliant | ISO 2859-1 Qualified
