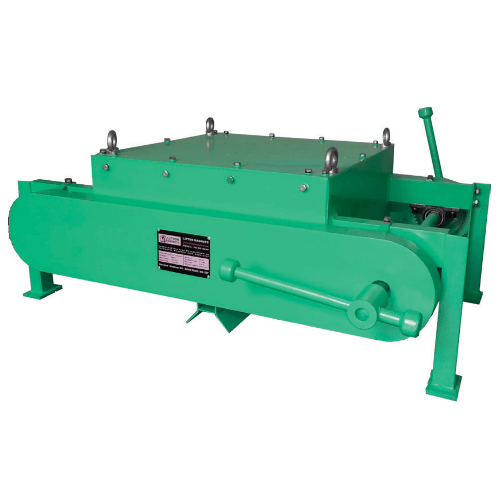

Overhead Separator : Chain Cleaning Permanent Magnet Suspended Separator

Abbreviations and Conventions used Storewide

All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:

L : Length | OD : Outer Dia | ID : Inner Dia | W : Width | H : Height | T : Thickness (also Height) | CS : Countersunk | G : Gauss

The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 10mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kg or N.

[10N (Newtons) = approx 1 Kg = approx 2.2 lbs Pull Force]

  • Higher-end version of the Type A with a gear and chain handle driven manual cleaning mechanism.
  • Comes with a belt and stopper to discharge the tramp.
  • Ideal for low to medium intensity impurities that can be manually cleaned off.
  • Works continuously with minimal maintenance & reliable operation.

Datasheet
