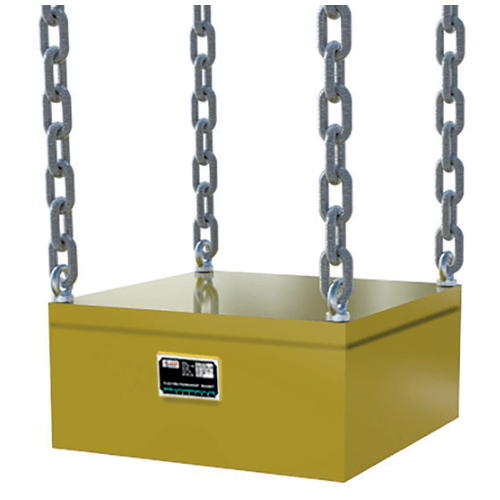

PM-MCA Series Manual Cleaning Permanent Magnet Suspended Separator
Abbreviations and Conventions used Storewide
All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:
L : Length | OD : Outer Dia | ID : Inner Dia | W : Width | H : Height | T : Thickness (also Height) | CS : Countersunk | G : Gauss
The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 10mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kg or N.
[10N (Newtons) = approx 1 Kg = approx 2.2 lbs Pull Force]
Characteristics:
-

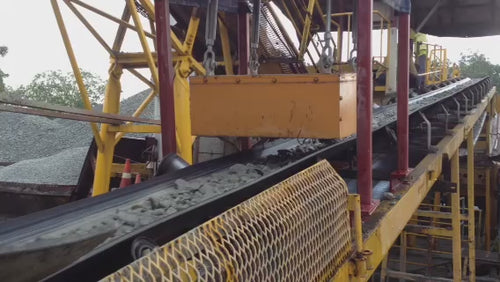

Simple, cost-effective and low-cost solution to impurity separation from conveyor belts.
-
Ideal for low-intensity impurities that can be manually cleaned off with a glove or
scraper. -
Works continuously with zero maintenance & reliable operation.
