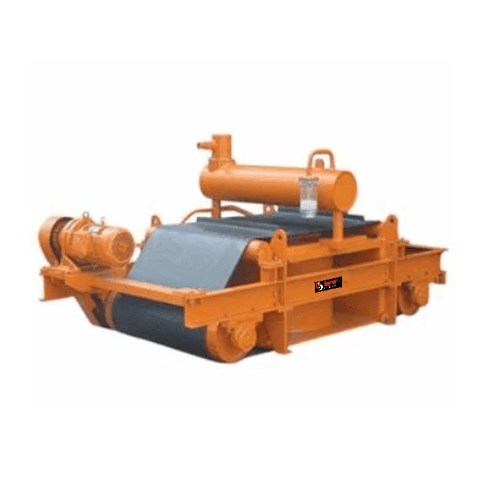

Overhead Separator : Oil-cooled Self Cleaning Electromagnet Separator

Abbreviations and Conventions used Storewide

All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:

L : Length | OD : Outer Dia | ID : Inner Dia | W : Width | H : Height | T : Thickness (also Height) | CS : Countersunk | G : Gauss

The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 10mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kg or N.

[10N (Newtons) = approx 1 Kg = approx 2.2 lbs Pull Force]

  • Driven by Electromagnetic field intensity to separate tramp that is continuously cleaned automatically.
  • Suitable for harsh and elevated temperature and high intensity impurity environments and high burden depth applications with wet, dry, fine or coarse materials in steel mills, refractory, mining, feed mill etc.
    Direct-drive self-cleaning units are designed to handle tough scrap metal separation requirements while assuring product purity.
  • Designed to operate continuously under harsh environments.

Datasheet
