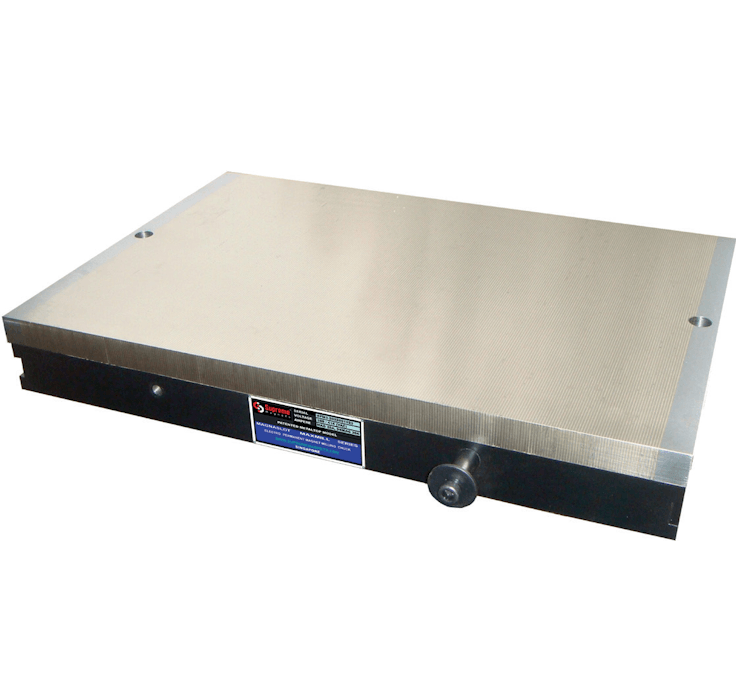

Magna EDGrind : Electropermanent Magnet Chuck for Grinding and EDM
Abbreviations and Conventions used Storewide
All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:
L : Length | OD : Outer Dia | ID : Inner Dia | W : Width | H : Height | T : Thickness (also Height) | CS : Countersunk | G : Gauss
The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 10mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kg or N.
[10N (Newtons) = approx 1 Kg = approx 2.2 lbs Pull Force]
- Cost effective and long lasting solution for larger grinding & EDM tables where mechanical / manual permanent magnet chucks are unsuitable due to reliability issues.
- Substantial electricity savings over medium to long term compared to regular Electro chucks.Same principle as the other members of the TURBO MAX family Electropermanent (EPM) technology.

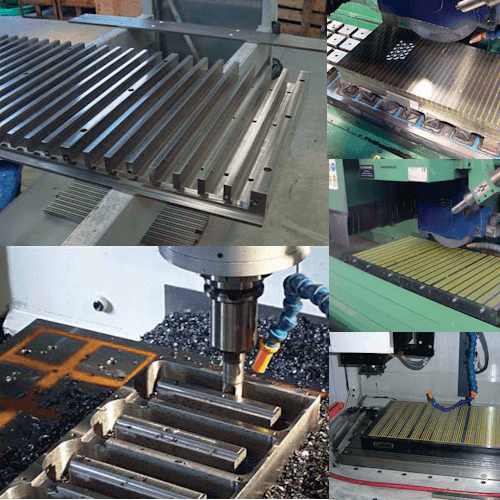

- Can be used for EDM or Grinding application.
- No electricity required during actual operation.
- Standard model now comes with an all metal top plate of Brass and Steel with a normal/ fine/microfine pitch. To specify the pitch upon order.
- Variable power control to adjust magnetic force.
- All sizes and types of jobs can be held securely and firmly.
- No heat build-up, no deformation and mechanical components.
- High accuracy during EDM & Grinding processes.
