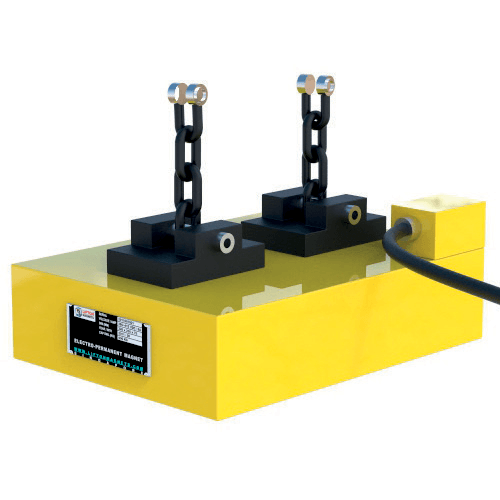

EPML-Plate Module - Electropermanent magnet steel plate lifting magnet modules
All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:
L : Length | W : Width | H : Height | T : Thickness (also Height)
The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 50mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kgs or N.
10N (Newtons) = approx. 1 Kg = approx 2.2 lbs Pull Force.

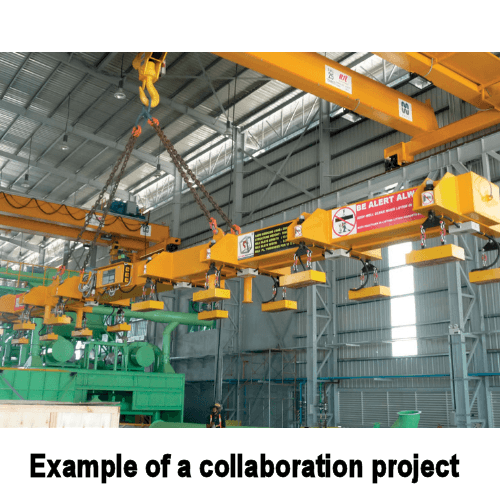

- Essential building block for a best-selling product. Multiple units of this module combine to make the popular EPML-PLATE system for single plate handling
- Ideal for crane fabricators to build your own white-labeled Electropermanent magnet lifting system for single steel plate handling
- These lifting magnet modules are available in various safe lifting capacities of 300 Kg, 500Kg, 750Kg, 1000Kg, 1500Kg, 2000kg, 2500Kg
- Compact, lightweight and waterproof, high strength and reliable with full adherence to industrial safety with 3 times Safety factor
- Each module comes with its own hooking point, hanging pin, suspension spring and stopper plate
- Single control system to control from 2 to 40 lifting modules of suitable capacity in each spreader
- If you are a Crane supplier with your own fabrication capability, you can opt to build your own white-labeled Electropermanent lifting system for resale by integrating several units of this module into your spreader. We will share the relevant knowhow
Datasheet
