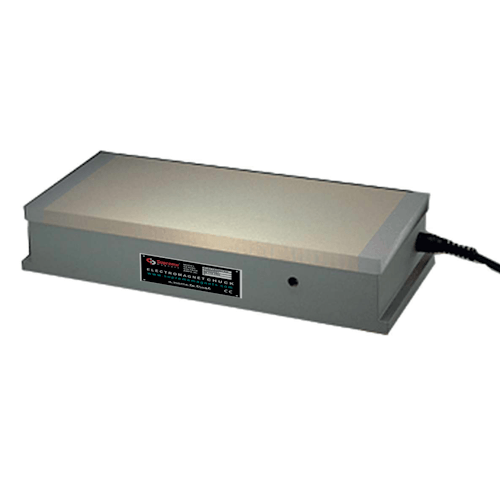

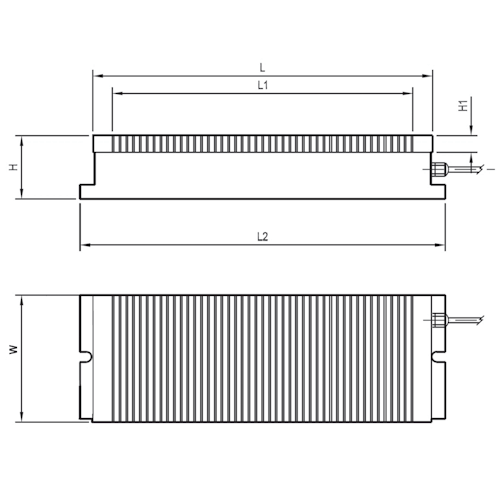

Ideal for thin components and for precision grinding.
-
The low magnetic flux does not interfere with the grinding operation thereby giving higher accuracy.
- All metal brass and steel laminated top plate.
- High resistance to coolant and corrosion.
- High mechanical rigidity and proven robustness.
- 100% water proof.
- Top plate is machinable up to 8 mm.
- Clamping force up to 12 kg/cm2 for large components.
- Pole pitch of 0.5mm (B) + 1.5mm (S) and low magnetic field height of 4mm.
-
Select this model if you require adequate holding power for thin to medium components in non-submerged machining applications on medium to large machines
