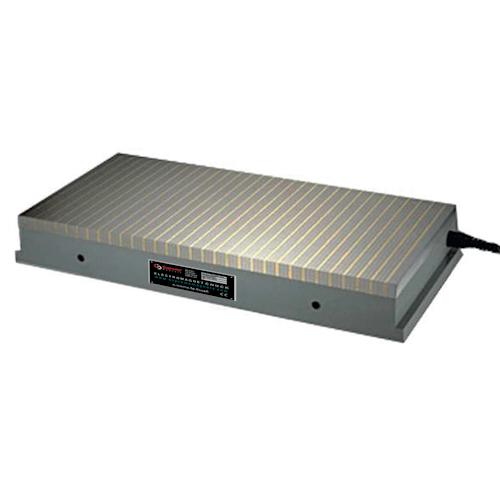

ElectroGrip - Universal Pole Electromagnet Chuck
Abbreviations and Conventions used Storewide
All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:

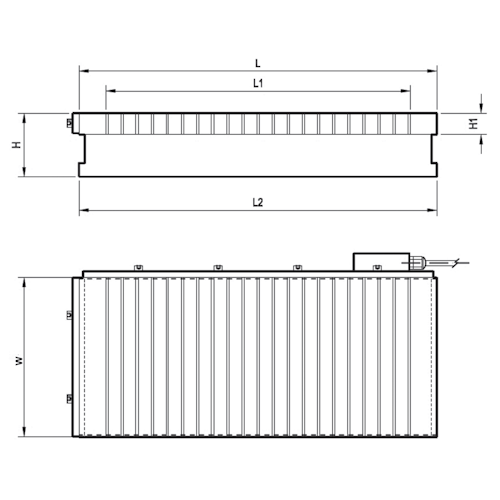

L : Length | OD : Outer Dia | ID : Inner Dia | W : Width | H : Height | T : Thickness (also Height) | CS : Countersunk | G : Gauss
The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 10mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kg or N.
[10N (Newtons) = approx 1 Kg = approx 2.2 lbs Pull Force] Use this text to share information about your product.

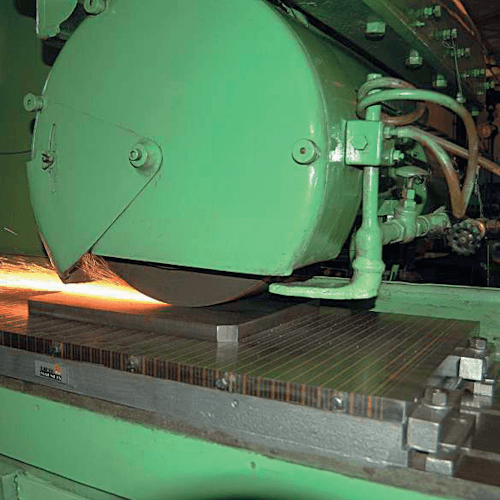

- Ideal for standard components and for precision grinding.
- The low magnetic flux does not interfere with the grinding operation thereby giving higher accuracy.
- Designed to meet the demands of the latest grinding operations which require both heavy duty grinding and high precision.
- Single solid piece body construction.
- 100% leak proof construction.
- Lowest height electro magnetic chucks.
- Low power consumption with little temperature rise.
- Possibility of combining several chucks for a large uninterrupted work surface.
- Low profile enables more grinding wheel head clearance.
- Uniform clamping force up to 14 kg/cm2 for large components.
-
Select this model if you require strong holding power for medium to large components in non-submerged machining applications on medium to large machines
