Magna Rail : Versatile Rail Machining Electropermanent Magnet Clamp
All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:

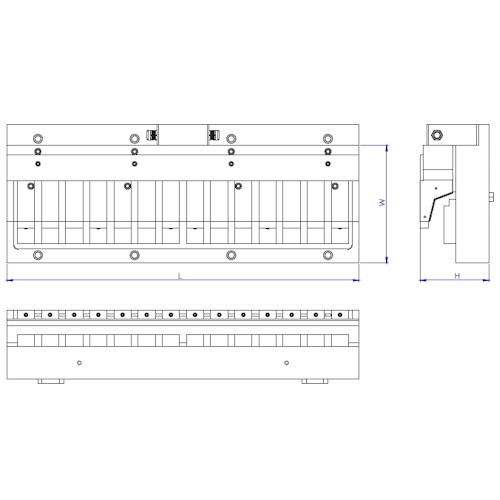

L : Length | W : Width | H : Height | T : Thickness (also Height)
The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 50mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kgs or N.
10N (Newtons) = approx. 1 Kg = approx 2.2 lbs Pull Force.

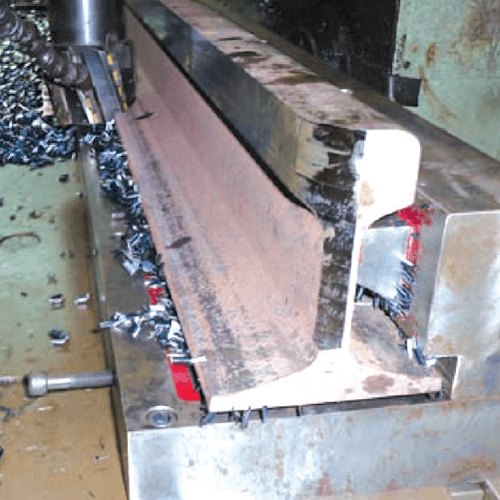

Versatile Rail Machining Electropermanent Magnet Clamp
- High clamping force for rigid & uniform clamping.
- Accurate alignment of rail achieved.
- Complete rail machining in only 2 set-up.
- No vibration of Rails during machining operation.
- Increased tool life.
- High stock removal.
- Superior accuracies and finishing.
- Easy chips removal.
- Energy saving.

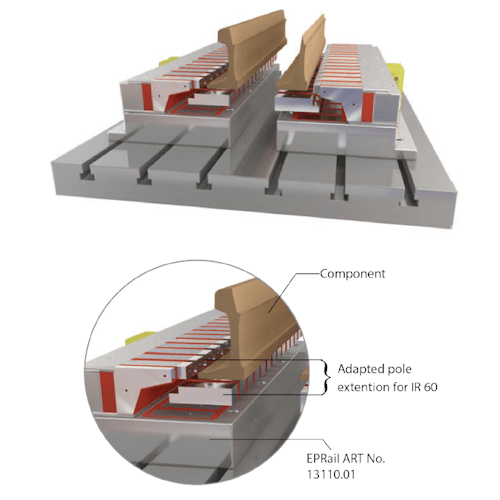

- Different Profiles of rails can be clamped on same Magnet using adapted pole
extensions. - Total face is accessible for machining.
- Select this product if you're looking for holding tools for the machining of rails
