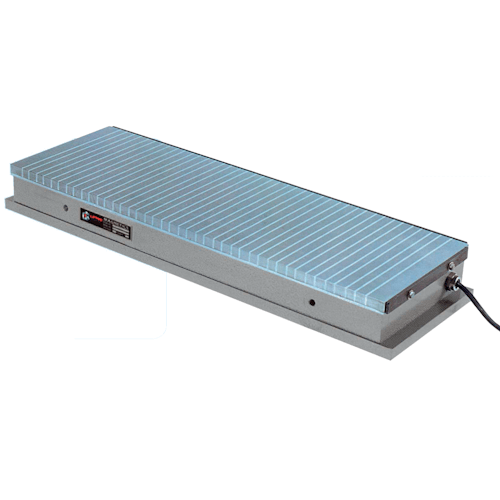

E-Mill : Standard Pole Electromagnetic Milling Chuck
All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:
L : Length | W : Width | H : Height | T : Thickness (also Height)
The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 50mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kgs or N.
10N (Newtons) = approx. 1 Kg = approx 2.2 lbs Pull Force.
- Has high mechanical rigidity and proven robustness.
- Guaranteed water proof.
- Full extended pole for maximum effective clamping area.
- Multicoil design for maximum power.
- The coils are made with enamelled copper wire.
- All steel top plate is machinable upto 6 mm.
- Clamping Force Upto 16 Kg/cm2
- Select this model if you require strong holding power for conventional milling of flat components
