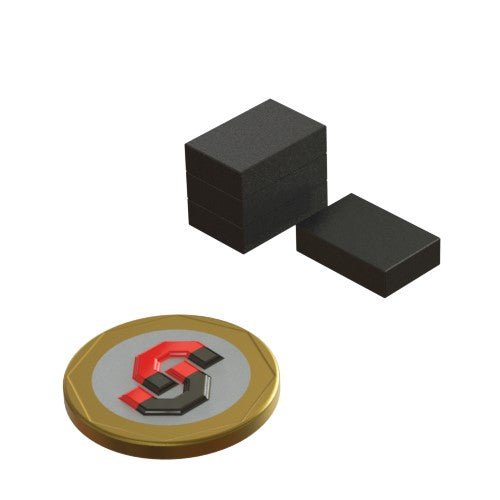

Ferrite magnet : 15mm L x 10mm W x 4mm T block

Abbreviations and Conventions used Storewide

All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:

L : Length | OD : Outer Dia | ID : Inner Dia | W : Width | H : Height | T : Thickness (also Height) | CS : Countersunk | G : Gauss

The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 10mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kg or N.

[10N (Newtons) = approx 1 Kg = approx 2.2 lbs Pull Force]

Dimensional tolerances

Typical dimensional tolerances for sintered magnets (depending on size and complexity are as follows

Neodymium (NdFeB) : ± 0.1

Samarium (SmCo) : ± 0.1

Ferrite / Ceramic : ± 0.2

AlNiCo : ± 0.01

  • 15x10x4mm block
  • Grade Y30BH
  • Approx 0.63 lb / 0.29 kg pull force
  • Magnetized through 4mm
  • Surface gauss approx. 1850 G
Quantity Discounts are automatically computed at checkout:
Qty 5-49 | Level 1 5% off
Qty 50-199 | Level 2 10% off
Qty 200-499 | Level 3 15% off
Qty 500-999 | Level 4 25% off
Qty ≥ 1000 | Level 5 35% off



RoHS, REACH Compliant | ISO 2859-1 Qualified

Original price $0.13 - Original price $0.13
Original price
$0.13
$0.13 - $0.13
Current price $0.13
Availability:
2500 in stock, ready to be shipped
