Rectangular Module Electromaxlift
Abbreviations and Conventions used Storewide
All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:
L : Length | OD : Outer Dia | ID : Inner Dia | W : Width | H : Height | T : Thickness (also Height) | CS : Countersunk | G : Gauss
The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 10mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kg or N.
[10N (Newtons) = approx 1 Kg = approx 2.2 lbs Pull Force] Use this text to share information about your product.

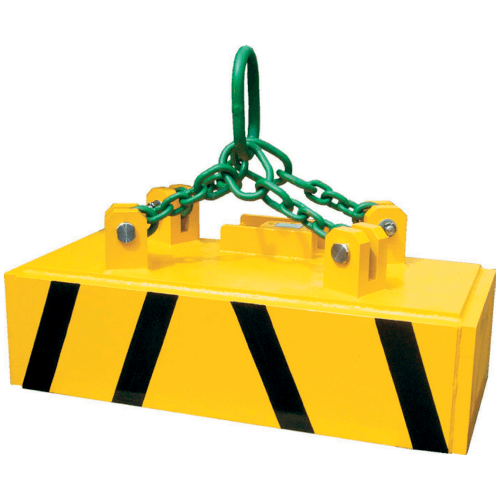

Powerful rectangular general purpose lifting electromagnet
- Available in Normal duty & Heavy-duty series, manufactured in monobloc casted construction or fabricated welded construction depending on budget and application

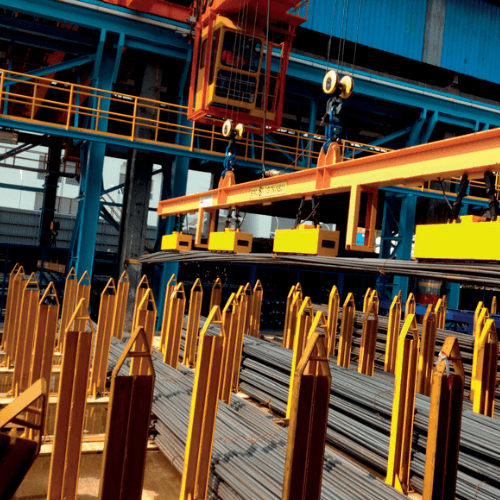

- Multiple modules are combined on a spreader beam to handle lengthy loads of 12 Mtrs or more
- Configuration and alignment of poles will be determined by the load to be handled
- Choice of Aluminium or Copper Conductor wound coil, special H/C insulation
- Completely sealed with thermal conductive compound and protected terminal box
- Operates on 220 Volts DC, Duty cycle available from 50% to 75%
- Heavy duty control panel, power control and magnetism retention mechanism upon power failure with 15-20 minute battery backup
- Ideal for easy & speedy handling of single or multiple steel plates, billets, rebar bundles, wire coils and coiled sheets and other high airgap loads in hot or cold operation

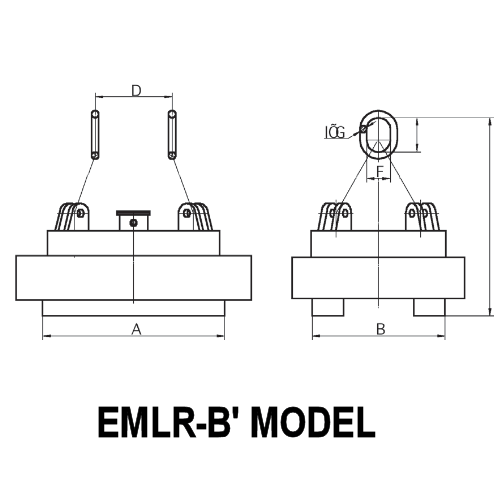

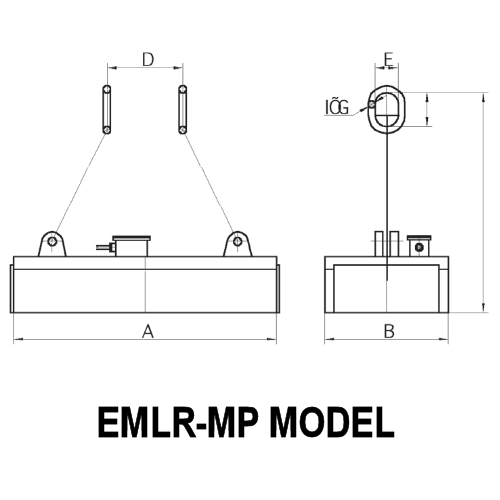

Table specs for EMLR-B' & EMLR-MP Models. Download the Datasheet for the full range
Datasheet
