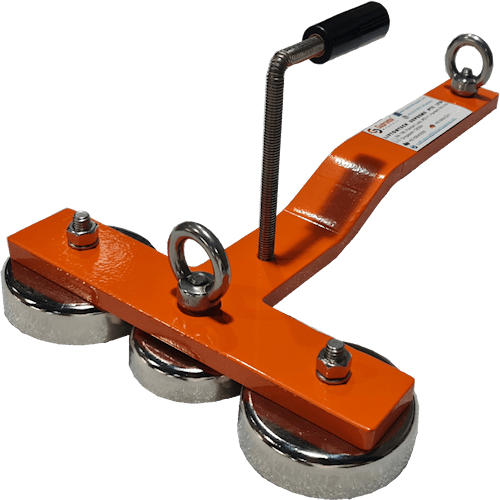

Bear Claw : Multipurpose Anchoring magnet
All Dimensions are in Metric Scale (mm); Conventions and abbreviations used throughout the Store:
L : Length | OD : Outer Dia | ID : Inner Dia | W : Width | H : Height | T : Thickness (also Height) | CS : Countersunk | G : Gauss
The terms Force or Pull Force are used interchangeably throughout the store and refer to the maximum observable or tested force against a 10mm thick grinded finish mild steel plate. The pull force will depreciate with thinner plates or sheets. The Pull force or Force is expressed in lbs, Kg or N.
10N (Newtons) = approx. 1 Kg = approx 2.2 lbs Pull Force.
- Compact & Lightweight anchoring magnet, with vertical clamping force from 300 to 500 Kg (on 20mm thick MS Plate).
- Excellent solution for subsurface holding and anchoring applications requiring more than 100 Kgs of vertical clamping force, underwater salvage usage, buoy markers, temporary anchors to a steel scaffold, additional anchor for divers; bolster anchor for height & safety access for manpower.
- Marine grade, with SS carabiner and eyebolt. Comes with a screw pin to assist in detaching by forcing an airgap.
-
This item is not to be used as a conventional lifting magnet.
- The Max Pull is obtained on a grinded finish mild steel plate of at least 20mm thick.
- A Supreme Magnets Innovation
Datasheet
RoHS, REACH Compliant | ISO 2859-1 Qualified
